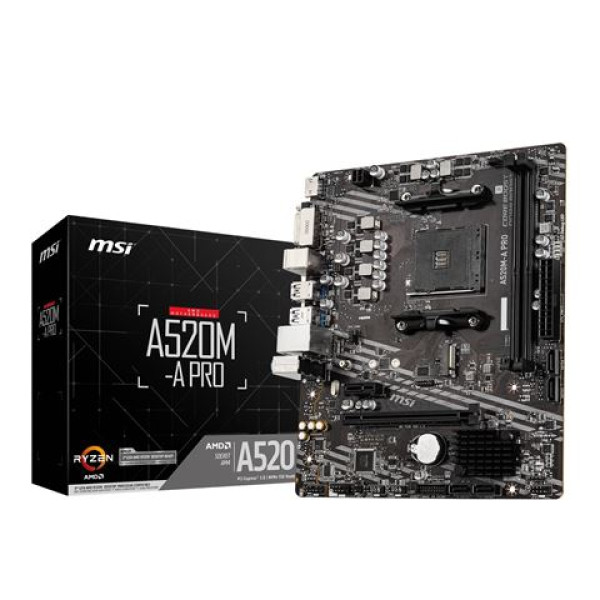

A520M-A PRO, Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors, AMD Socket AM4, 1x PCI-E 3.0 x16 slot, HDMI, DVI-D – Requires Processor Graphics, 2 DIMMs, Dual Channel DDR4-4600MHz, 1x PCI-E 3.0 x1 slot, 1x M.2 Gen3 x4 slot, 4x SATA 6Gbs ports
- Socket
- AM4
- CPU
- AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7
- Chipset (N)
- AMD A520
- BUS [MHz]
- 1600
- Memorija
- DDR4
- Broj slotova
- 2
- Max. memorije [GB]
- 64
- Takt memorije [MHz]
- 2933, 3200, 3466, 3600
- AGP 4x8x
- na
- PCI
- na
- PCIe 3.0 x16
- 1
- PCIe x16
- na
- PCIe x8
- na
- PCIe x4
- na
- PCIe x1
- 1
- PCI-X
- na
- PATA
- na
- SATA
- na
- SATA 6Gbs
- 4
- RAID polje
- 0, 1
- Audio
- 8-kanalni audio
- Mreža
- 1x 101001000 Ethernet
- Parallel
- na
- Serial
- na
- PS2 mouse
- 1
- PS2 keyboard
- 1
- D-sub
- na
- DVI
- 1
- Display port
- na
- HDMI
- 1
- RJ45
- 1
- USB 2.0
- 2
- USB 3.0
- 2
- SPDIF Out
- na
- 4-pin ATX 12V Power
- 1
- 8-pin ATX 12V Power
- na
- 20-pin ATX Power
- Y
- 24-pin ATX Power
- Y
- Front panel audio
- na
- Chasis Intrusion
- na
- CD Audio In
- na
- Chasis Fan Power
- 1
- CPU Fan Power
- 1
- Format ploče
- mATX
- WLAN connector
- na
- Podrška za integrisani grafičk
- Y
- SATA Express
- na
- M.2
- 1
- U.2
- na
- USB 3.1
- 0
- USB 3.1
- 0
- USB 3.2
- 4
- PCIe 5.0 x16
- 0
