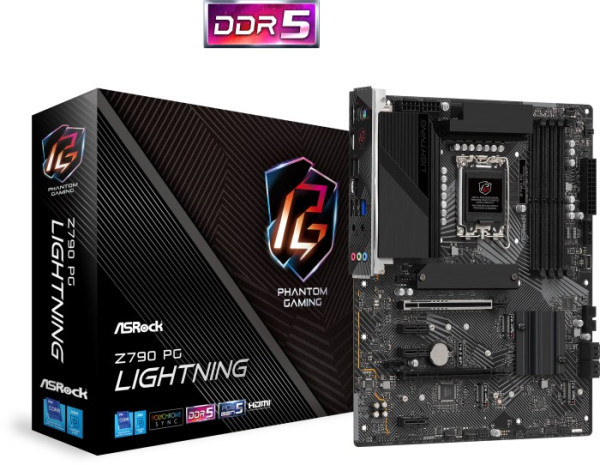

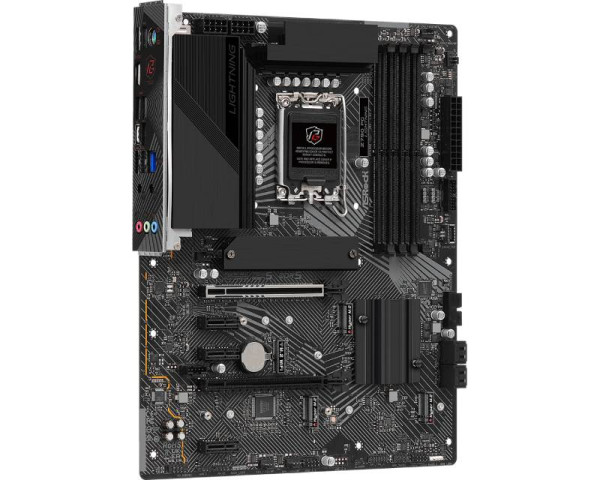

MB s1700 ASRock Z790 PG LIGHTNING 90-MXBKA0-A0UAYZ

MB s1700 ASRock Z790 PG LIGHTNING 90-MXBKA0-A0UAYZ

AsRock
Šifra: 8223
  • Proizvod iz grupe: Intel
  • Proizvođač: AsRock
  • Dostupna količina: 2
Maloprodajna cena: 23.932,00 rsd.
*
Za odloženo plaćanje
*
Cene su sa PDV-om
WebCena: 21.999,00 rsd.
*
Cena za gotovinu, pouzećem ili kartice jednokratno.
Popust: 2.011,00 rsd.
 Količina
    • CPU
      - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
      - Supports Intel® Hybrid Technology
      - Supports Intel® Turbo Boost Max 3.0 Technology
      - Supports Intel® Thermal Velocity Boost (TVB)
      - Supports Intel® Adaptive Boost Technology (ABT)
    • Chipset
      - Intel® Z790
    • Memory
      - Dual Channel DDR5 Memory Technology
      - 4 x DDR5 DIMM Slots
      - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
      - Max. capacity of system memory: 192GB
      - Supports Intel® Extreme Memory Profile (XMP) 3.0

      *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
      1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
      2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
      2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
    • BIOS
      - 128Mb AMI UEFI Legal BIOS with GUI support
    • Graphics
      - Intel® Xe Graphics Architecture (Gen 12)
      - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
      - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

      *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    • Audio
      - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
      - Nahimic Audio
    • LAN
      - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
      - Dragon RTL8125BG
      - Supports Phantom Gaming LAN Software
      - Smart Auto Adjust Bandwidth Control
      - Visual User Friendly UI
      - Visual Network Usage Statistics
      - Optimized Default Setting for Game, Browser, and Streaming Modes
      - User Customized Priority Control



  • Slots
    CPU:
    - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode*
    - 3 x PCIe 3.0 x1 Slots (PCIE2, PCIE3 and PCIE5)*
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

    - Supports AMD CrossFire™

    *Supports NVMe SSD as boot disks
  • Storage
    CPU:
    - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
    - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 4 x SATA3 6.0 Gb/s Connectors

    *Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks
  • RAID
    - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
  • USB
    - 1 x USB 3.2 Gen2x2 Type-C (Rear)
    - 1 x USB 3.2 Gen2 Type-A (Rear)
    - 1 x USB 3.2 Gen1 Type-C (Front)
    - 9 x USB 3.2 Gen1 Type-A (5 Rear, 4 Front)
    - 3 x USB 2.0 (1 Rear, 2 Front)

    *All USB ports support ESD Protection
  • Connector
    - 1 x eDP Signal Connector
    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 1 x RGB LED Header*
    - 3 x Addressable LED Headers**
    - 1 x CPU Fan Connector (4-pin)***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    - 1 x 24 pin ATX Power Connector
    - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
    - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen1 Header

    *Supports in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***CPU_FAN1 supports the fan power up to 1A (12W).
    **** CPU_FAN2/WP supports the fan power up to 2A (24W).

    *****CHA_FAN1~5/WP support the fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.

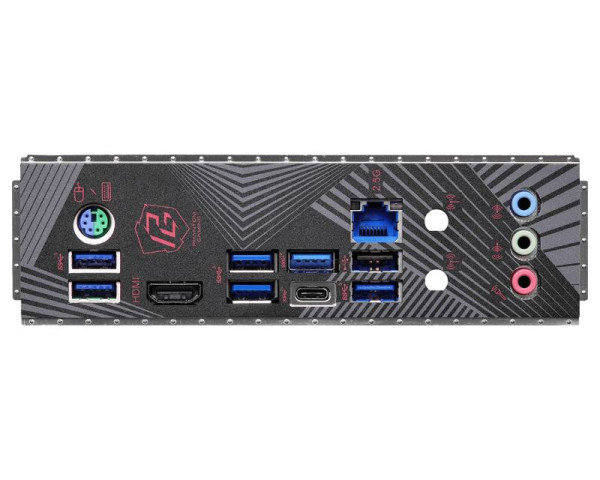

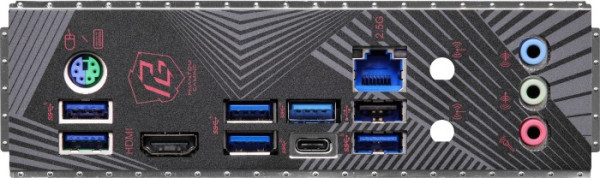

  • Rear Panel I/O
    - 2 x Antenna Mounting Points
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x HDMI Port
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
    - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
    - 5 x USB 3.2 Gen1 Ports
    - 1 x USB 2.0 Port
    - 1 x RJ-45 LAN Port
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (Phantom Gaming Tuning)
    - ASRock Phantom Gaming LAN Software
    - ASRock Polychrome SYNC*
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash
    - ASRock Easy RAID Installer
  • Form Factor
  • - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm






    • CPU
      - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
      - Supports Intel® Hybrid Technology
      - Supports Intel® Turbo Boost Max 3.0 Technology
      - Supports Intel® Thermal Velocity Boost (TVB)
      - Supports Intel® Adaptive Boost Technology (ABT)
    • Chipset
      - Intel® Z790
    • Memory
      - Dual Channel DDR5 Memory Technology
      - 4 x DDR5 DIMM Slots
      - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
      - Max. capacity of system memory: 192GB
      - Supports Intel® Extreme Memory Profile (XMP) 3.0

      *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
      1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
      2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
      2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
    • BIOS
      - 128Mb AMI UEFI Legal BIOS with GUI support
    • Graphics
      - Intel® Xe Graphics Architecture (Gen 12)
      - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
      - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

      *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    • Audio
      - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
      - Nahimic Audio
    • LAN
      - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
      - Dragon RTL8125BG
      - Supports Phantom Gaming LAN Software
      - Smart Auto Adjust Bandwidth Control
      - Visual User Friendly UI
      - Visual Network Usage Statistics
      - Optimized Default Setting for Game, Browser, and Streaming Modes
      - User Customized Priority Control



  • Slots
    CPU:
    - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode*
    - 3 x PCIe 3.0 x1 Slots (PCIE2, PCIE3 and PCIE5)*
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

    - Supports AMD CrossFire™

    *Supports NVMe SSD as boot disks
  • Storage
    CPU:
    - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
    - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 4 x SATA3 6.0 Gb/s Connectors

    *Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks
  • RAID
    - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
  • USB
    - 1 x USB 3.2 Gen2x2 Type-C (Rear)
    - 1 x USB 3.2 Gen2 Type-A (Rear)
    - 1 x USB 3.2 Gen1 Type-C (Front)
    - 9 x USB 3.2 Gen1 Type-A (5 Rear, 4 Front)
    - 3 x USB 2.0 (1 Rear, 2 Front)

    *All USB ports support ESD Protection
  • Connector
    - 1 x eDP Signal Connector
    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 1 x RGB LED Header*
    - 3 x Addressable LED Headers**
    - 1 x CPU Fan Connector (4-pin)***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    - 1 x 24 pin ATX Power Connector
    - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
    - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen1 Header

    *Supports in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***CPU_FAN1 supports the fan power up to 1A (12W).
    **** CPU_FAN2/WP supports the fan power up to 2A (24W).

    *****CHA_FAN1~5/WP support the fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.
  • Rear Panel I/O
    - 2 x Antenna Mounting Points
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x HDMI Port
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
    - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
    - 5 x USB 3.2 Gen1 Ports
    - 1 x USB 2.0 Port
    - 1 x RJ-45 LAN Port
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (Phantom Gaming Tuning)
    - ASRock Phantom Gaming LAN Software
    - ASRock Polychrome SYNC*
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash
    - ASRock Easy RAID Installer
  • Form Factor
  • - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
