MB Gigabyte AMD AM4 A520M DS3H V2 1.0

MB Gigabyte AMD AM4 A520M DS3H V2 1.0

Gigabyte
Šifra: 2512
  • Proizvod iz grupe: AMD
  • Proizvođač: Gigabyte
  • Dostupna količina: 8
Maloprodajna cena: 9.766,00 rsd.
*
Za odloženo plaćanje
*
Cene su sa PDV-om
WebCena: 8.999,00 rsd.
*
Cena za gotovinu, pouzećem ili kartice jednokratno.
Popust: 800,00 rsd.
 Količina
  • CPU
    1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD A520
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor:
    1. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
      * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Maximum shared memory of 16 GB
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN
    1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)
  • Expansion Slots
    1 x PCI Express x16 slot, integrated in the CPU:
    1. Supporting PCIe 3.0 x16 mode
    1 x PCI Express x1 slot, integrated in the Chipset:
    1. Supporting PCIe 3.0 x1 mode
  • Storage Interface
    1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
    1. Supporting SATA and PCIe 3.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors, integrated in the Chipset:
    1. Supporting for RAID 0, RAID 1, and RAID 10
  • USB
    CPU:
    1. 4 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x system fan header
    5. 1 x M.2 Socket 3 connector
    6. 4 x SATA 6Gb/s connectors
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x USB 3.2 Gen 1 header
    10. 1 x USB 2.0/1.1 header
    11. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    12. 1 x Clear CMOS jumper

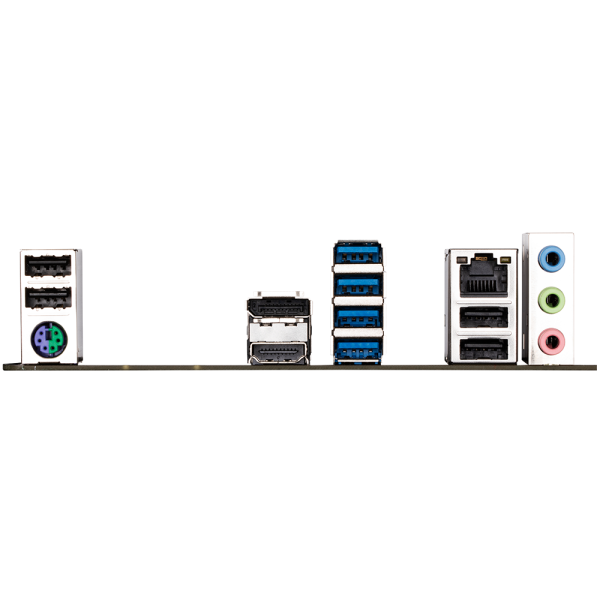

  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x DisplayPort
    3. 1 x HDMI port
    4. 4 x USB 3.2 Gen 1 ports
    5. 2 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Fan fail warning
    5. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 24.4cm

Tip procesora: AMD
Podnožje: AMD® AM4
Čipset: AMD® A520
Format ploče: Micro ATX
Podržana memorija: DDR4
Bluetooth: Ne
Podržani procesori: AMD AM4 podnožje podržava AMD Ryzen 5000 Series/Ryzen 5000 G-Series/Ryzen 4000 G-Series i Ryzen 3000 i Ryzen 3000 G-Series Procesore
Memorija: 4 x DDR4 DIMM podnožje podržava do 128 GB (32GB po slotu) sistemske memorije Podržava DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memorijske module Dual channel memory architecture Podržava ECC Un-buffered DIMM 1Rx8/2Rx8 memorijske module Podržava for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memorijske module Podržava Extreme Memory Profile (XMP) memorijske module
Slotovi za proširenje: 1 x PCI Express x16 slot integrisan u CPU: Podržava PCIe 3.0 x16 mod
1 x PCI Express x1 slot, integrisan u Chipset: Podržava PCIe 3.0 x1 mod
Skladište: 1 x M.2 konektor, integrisan u CPU, podržava Socket 3, M key, type 2280 SSDs: Podržava SATA i PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s konektora, integrisani u Chipset: Podržava RAID 0, RAID 1, RAID 10
Mrežna karta: Realtek GbE LAN chip (1 Gbps/100 Mbps)
Zvučna karta: Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
USB: CPU: 4 x USB 3.2 Gen 1 porta na zadnjem panelu Chipset: 2 x USB 3.2 Gen 1 porta dostupna preko internog USB headera
6 x USB 2.0/1.1 porta (4 porta na zadnjem panelu, 2 porta dostupna preko internog USB headera)
Konektori na zadnjoj strani: 1 x PS/2 kombo port za miš/tastaturu
1 x DisplayPort
1 x HDMI
4 x USB-A 3.2 Gen 1
2 x USB-A 2.0 1 x RJ-45
3 x Audio porta
Interni konektori: 1 x 24-pin ATX main power konektor
1 x 8-pin ATX 12V power konektor
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 konektor
4 x SATA 6Gb/s konektora
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0 header
1 x Trusted Platform Module (TPM) header (2x6 pin, samo za TPM2.0_S module)
1 x Clear CMOS jumper
BIOS: 1 x 128 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Prava potrošača: Zakonska saobraznost 2 godine + 1 godina dodatne proizvođačke garancije uz garantnu izjavu proizvođača
EAN: 4719331854690
