| Tip procesora: | AMD |
| Podnožje: | AMD® AM4 |
| Čipset: | AMD® B550 |
| Format ploče: | ATX |
| Podržana memorija: | DDR4 |
| Podržani procesori: | - Ugrađeni AMD AM4 podnožje za 3rd Gen AMD Ryzen i 3rd Gen AMD Ryzen sa Radeon grafičkim procesorima |
| Memorija: | 3rd Gen AMD Ryzen procesora - 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered memoriju 3rd Gen AMD Ryzen sa Radeon grafičkim procesorima - 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC i non-ECC, Un-buffered memoriju - Dual Channel Memory Architecture |
| Multi-GPU podrška: | - Podržava AMD 2-Way CrossFireX tehnologiju |
| Integrisana grafička karta: | - 1 x DisplayPort 1.2 - 1 x HDMI 2.1(4K@60HZ) |
| Slotovi za proširenje: | 3rd Gen AMD Ryzen procesora - 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen sa Radeon grafičkim procesorima - 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset - 1 x PCIe 3.0 x16 (x4 mode) - 3 x PCIe 3.0 x1 |
| Skladište: | 3rd Gen AMD Ryzen procesora: - 1 x M.2 podnožje 3, sa M key, tip 2242/2260/2280/22110 storage uređaja podržava (SATA & PCIe 4.0 x4 mode) 3rd Gen AMD Ryzen sa Radeon grafičkim procesorima: - 1 x M.2 podnožje 3, sa M key, tip 2242/2260/2280/22110 storage uređaja podržava (SATA & PCIE 3.0 x 4 mode) AMD B550 Chipset: - 1 x M.2 podnožje 3, sa M key, tip 2242/2260/2280/22110 storage uređaja podržava (SATA & PCIE 3.0 x 4 mode) - 6 x SATA 6Gb/s port(s) - Podržava Raid 0, 1, 10 |
| Mrežna karta: | - Realtek RTL8111H - ASUS LANGuard |
| Zvučna karta: | Realtek ALC887 7.1 -Channel High Definition Audio CODEC - Podržava: Jack-detection, Multi-streaming, Front Panel Jack-retasking, i do 24-Bit/192kHz playback Audio Feature: - Optical S/PDIF out port(s) at back panel - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors - Unique de-pop circuit |
| USB: | USB portovi sa zadnje strane ( Total 8 ) - 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) - 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) - 2 x USB 2.0 port(s)(2 x Type-A) USB portovi sa prednje strane ( Total 6 ) - 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) - 4 x USB 2.0 port(s)(4 x Type-A) |

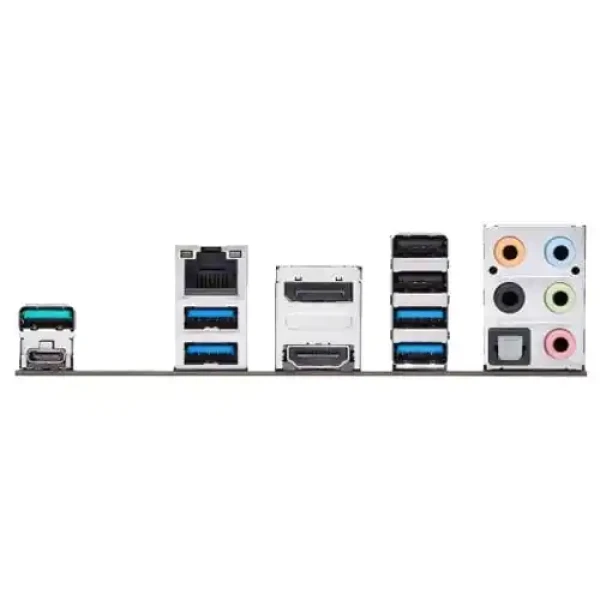

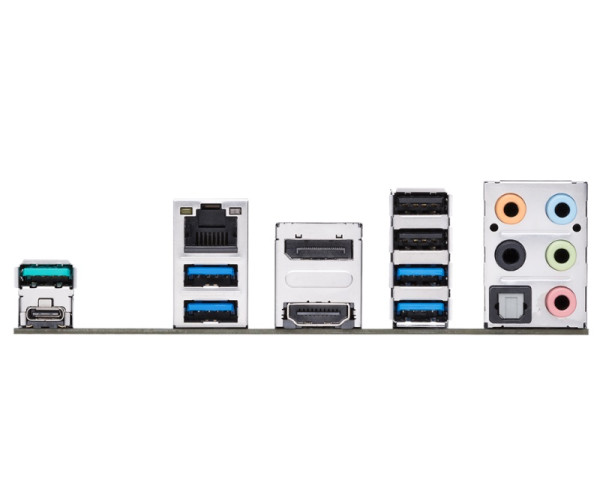

| Konektori na zadnjoj strani: | - 1 x DisplayPort - 1 x HDMI - 1 x LAN (RJ45) port(s) - 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C) - 4 x USB 3.2 Gen 1 (blue) Type-A - 2 x USB 2.0 - 1 x Optical S/PDIF out - 5 x Audio jack(s) |
| Interni konektori: | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers - 1 x Addressable Gen 2 header(s) - 1 x USB 3.2 Gen 1(up to 5Gbps) konektor podržava dodatna 2 USB 3.2 Gen 1 port(s) - 2 x USB 2.0 konektor podržava dodatna 4 USB 2.0 port(s) - 1 x M.2 podnožje 3 sa M key, tip 2242/2260/2280/22110 storage uređaje podržava (SATA & PCIe 4.0 x4 mode) - 1 x M.2 podnožje 3 sa M key, tip 2242/2260/2280/22110 storage uređaje podržava (SATA & PCIE 3.0 x 4 mode) - 1 x SPI TPM header - 6 x SATA 6Gb/s connector(s) - 1 x Thunderbolt header(s) - 1 x 24-pin EATX Power connector(s) - 1 x 8-pin EATX 12V Power connectors - 1 x Front panel audio connector(s) (AAFP) - 1 x Thermal sensor connector(s) - 1 x Clear CMOS jumper(s) - 1 x System panel connector - 1 x COM port header |
| BIOS: | - 256 Mb Flash ROM, UEFI AMI BIOS |
| Prava potrošača: | Zakonska saobraznost 2 godine |
| EAN: | 4718017782340 |
