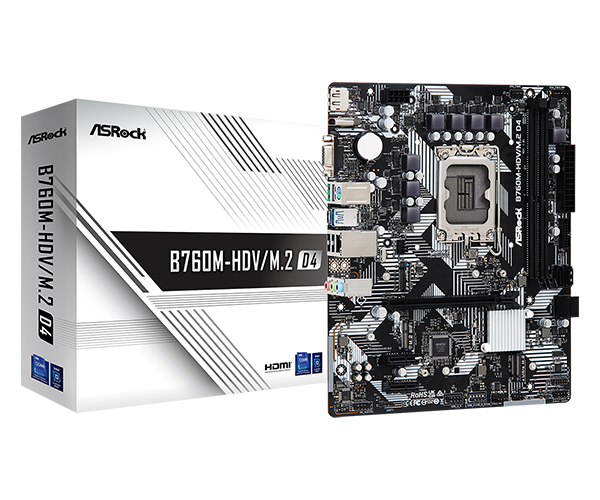

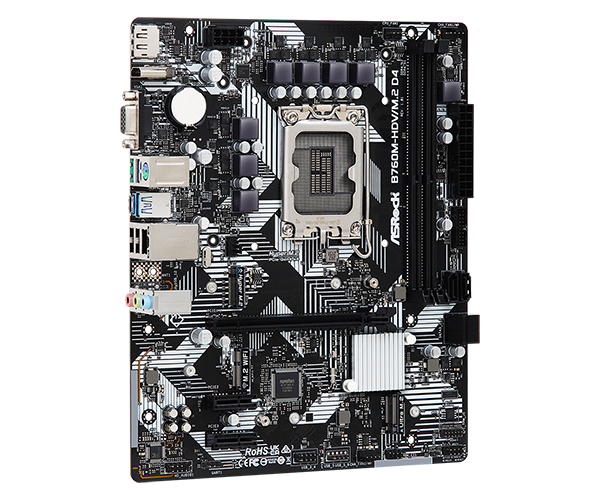

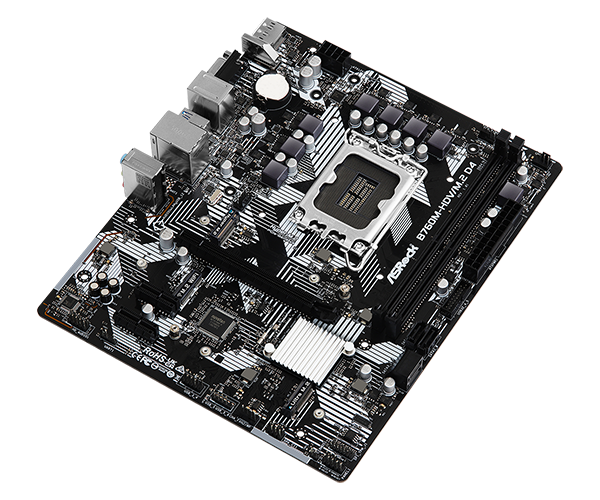

Matična ploča ASROCK B760M-HDV/M.2 D4/LGA1700
AsRockŠifra: 8192
Maloprodajna cena:
11.990,00 rsd.
*
Za odloženo plaćanje
*
Cene su sa PDV-om
WebCena:
11.099,00 rsd.
*
Cena za gotovinu, pouzećem ili kartice jednokratno.
Popust:
983,00 rsd.
- Unique FeatureRock-Solid Durability
- 5+1+1 Power Phase
EZ Update
- ASRock Auto Driver Installer - CPU- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
- Supports Intel® Thermal Velocity Boost (TVB)
- Supports Intel® Adaptive Boost Technology (ABT) - Chipset- Intel® B760
- Memory- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB*
- Supports Intel® Extreme Memory Profile (XMP) 2.0*1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. - BIOS- 128Mb AMI UEFI Legal BIOS with GUI support
- Graphics- Intel® Xe Graphics Architecture (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. - Audio- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
- LAN- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H - SlotsCPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*Supports NVMe SSD as boot disks - StorageCPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors***Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
**If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled. - RAID- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- USB- 1 x USB 3.2 Gen1 Type-C (Rear)
- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 5 x USB 2.0 (2 Rear, 3 Front)
* All USB ports support ESD Protection - Connector- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)*CPU_FAN1 supports the fan power up to 1A (12W).
**CPU_FAN2/WP supports the fan power up to 2A (24W).
***CHA_FAN1~2/WP support the fan power up to 2A (24W).

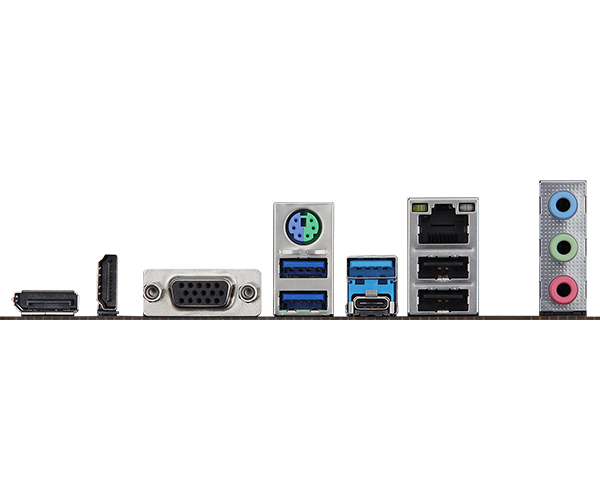

CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use. - Rear Panel I/O- 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 3 x USB 3.2 Gen1 Type-A Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone - Software and UEFISoftware
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer*These utilities can be downloaded from ASRock Live Update & APP Shop. - Accessories- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets - Form Factor- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
- OS- Microsoft® Windows® 10 64-bit / 11 64-bit
- Certifications- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
- Unique FeatureRock-Solid Durability
- 5+1+1 Power Phase
EZ Update
- ASRock Auto Driver Installer - CPU- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
- Supports Intel® Thermal Velocity Boost (TVB)
- Supports Intel® Adaptive Boost Technology (ABT) - Chipset- Intel® B760
- Memory- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB*
- Supports Intel® Extreme Memory Profile (XMP) 2.0*1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. - BIOS- 128Mb AMI UEFI Legal BIOS with GUI support
- Graphics- Intel® Xe Graphics Architecture (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. - Audio- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
- LAN- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H - SlotsCPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*Supports NVMe SSD as boot disks - StorageCPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors***Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
**If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled. - RAID- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- USB- 1 x USB 3.2 Gen1 Type-C (Rear)
- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 5 x USB 2.0 (2 Rear, 3 Front)
* All USB ports support ESD Protection - Connector- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)*CPU_FAN1 supports the fan power up to 1A (12W).
**CPU_FAN2/WP supports the fan power up to 2A (24W).
***CHA_FAN1~2/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use. - Rear Panel I/O- 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 3 x USB 3.2 Gen1 Type-A Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone - Software and UEFISoftware
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer*These utilities can be downloaded from ASRock Live Update & APP Shop. - Accessories- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets - Form Factor- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
- OS- Microsoft® Windows® 10 64-bit / 11 64-bit
- Certifications- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
