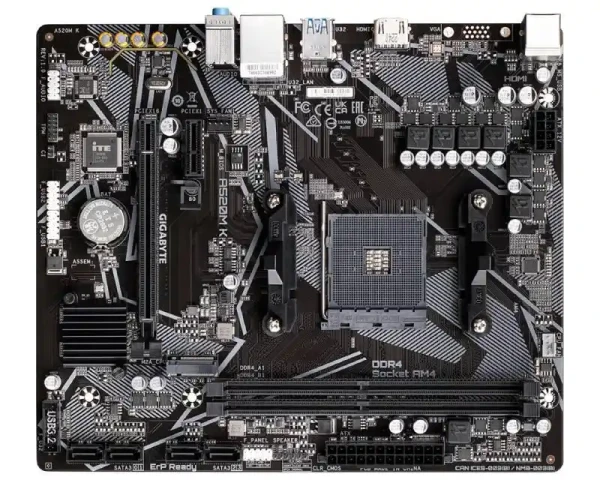

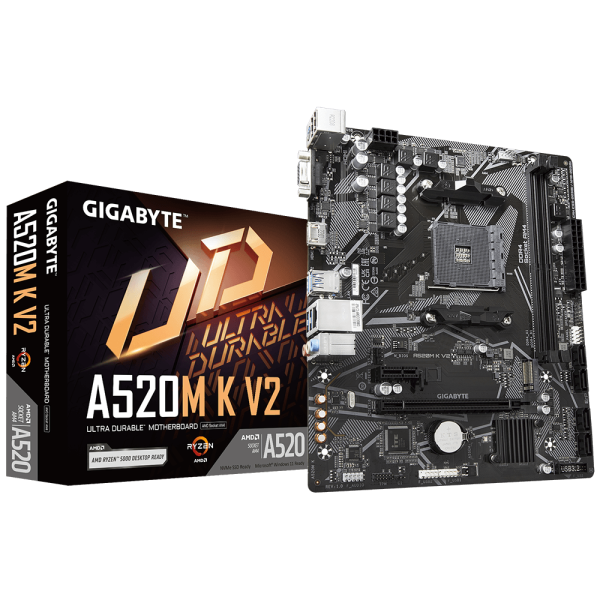

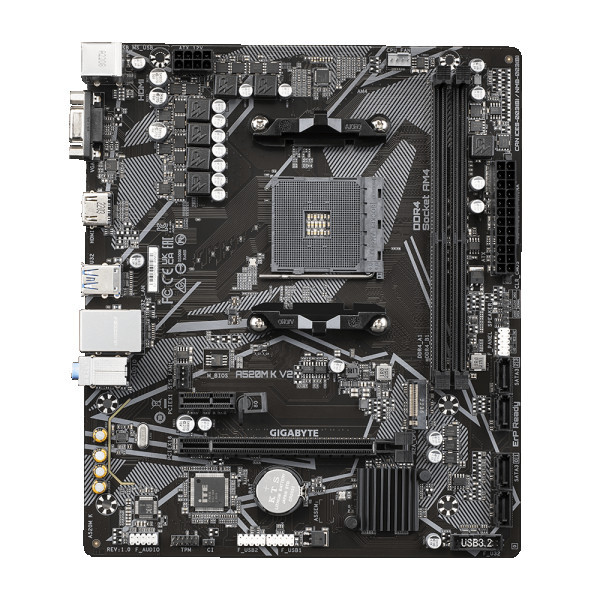

Matična ploča AM4 Gigabyte A520M K V2 G10 HDMI/M.2
GigabyteŠifra: 2631
Maloprodajna cena:
7.452,00 rsd.
*
Za odloženo plaćanje
*
Cene su sa PDV-om
WebCena:
6.899,00 rsd.
*
Cena za gotovinu, pouzećem ili kartice jednokratno.
Popust:
611,00 rsd.
| Model | Gigabyte A520M K V2 Matična ploča DDR4 AM4 Micro ATX |
| Procesorsko podnožje (Socket) | AMD Socket AM4 |
| Skup čipova (Chipset) | AMD A520 |
| Podrška za procesore | AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors |
| Tip memorije (RAM) | DDR4 |
| Broj memorijskih slotova | 2x 288-Pin DDR4 |
| Podrška za memorije | 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Podrška za grafiku - portovi | Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Maximum shared memory of 16 GB |
| Slotovi za proširenja | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| M.2 portovi | 1x M.2 Socket 3 |
| Čuvanje podataka - portovi | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| U.2 portovi | nema |
| SATA Express portovi | nema |
| SATA portovi | 4x SATA 6Gb/s |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Zvuk (Audio) | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| USB portovi | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |

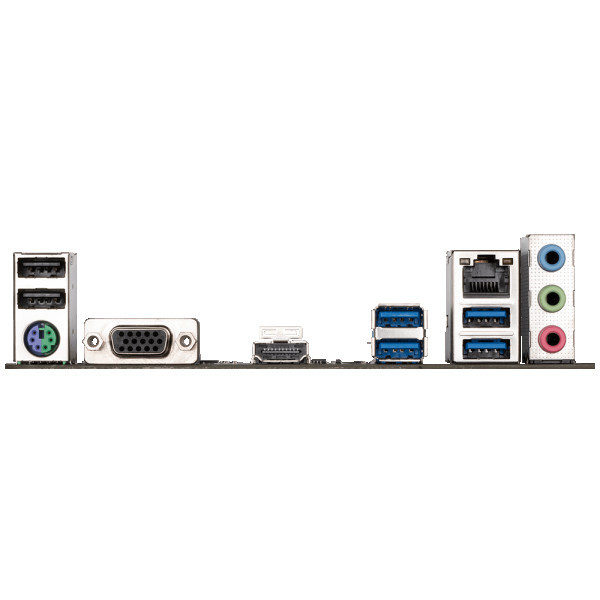

| Konektori na zadnjoj strani | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Unutrašnji konektori | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
| Posebne mogućnosti | Support for APP Center @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| Operativni sistem | Windows® 10; Windows® 11 |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Format | Micro ATX |
| Proizvođač | GIGABYTE |
| Ostali priključci | 1 x Clear CMOS jumper, |
| Format | microATX |
| Broj kanala | 8 (7.1) |
| USB 2.0 | 2 |
| USB 3.2 priključci | 1 (Tip A) Gen1 Header |
| Tip memorije | DDR4 |
| Dimenzije | 233mm x 198mm |
| Ostale osobine | Dual Channel, |
| Reklamacioni period | 36 meseci |
| Model | Realtek® |
| Napomena | Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu |
| Čipset | AMD® A520 |
| Pakovanje | LAN bandwidth management software, |
| Procesorsko ležište (socket) | AMD AM4 |
| SATA priključci | 1x SATA III |
| Ostali slotovi | 1x M.2 konektor, |
| Podržane tehnologije | Easy Tune, |
| USB 3.1 priključci | 4 (Tip A) Gen1 |
| RAID | RAID 0, |
| PCI Express x16 slot | 1x PCI Express 3.0 (x16 mode) |
| PCI slot | 2 |
| PCI Express x1 slot | 1x PCI Express 3.0 |
| USB 2.0 priključci | 2 (Tip A) |
| RJ-45 (LAN) | 1 |
| Žična mreža (LAN) | 1x 10/100/1.000Mbps (Gigabit ethernet) |
| PS/2 | 1 (tastatura ili miš) |
| Ukupno USB priključaka | 6 |
| Audio | 1x Front panel audio, |
| HDMI priključci | 1x HDMI 2.1 |
| Memorijski slotovi | 2x DDR4 |
| Podržane memorije | 2133,2400,2667,2933,3200,3333,3600,4000,4600,4866,5000 MHz |
| Maksimalna ukupna memorija | 64GB |
| SATA priključci (ukupno) | 1 |
| Naponski priključci | 1 x 24 pin ATX Power Connector, |
| Fiksirajući otvori | 6 |
| Ostali skladišni interfejs | 1 x M.2 Socket 3 connector |
