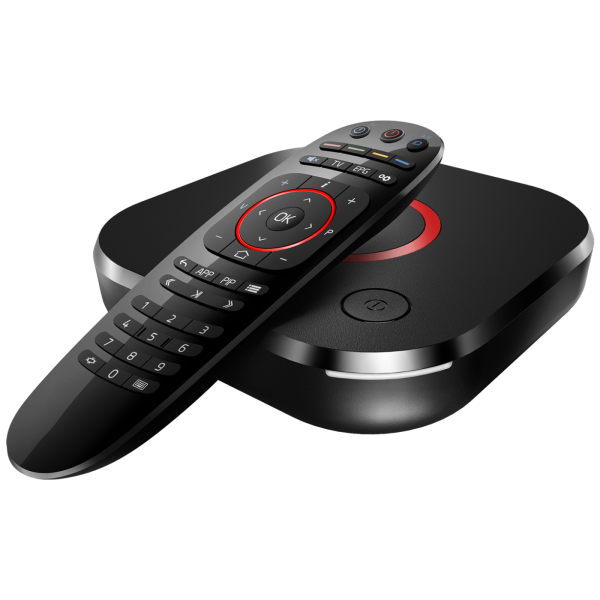

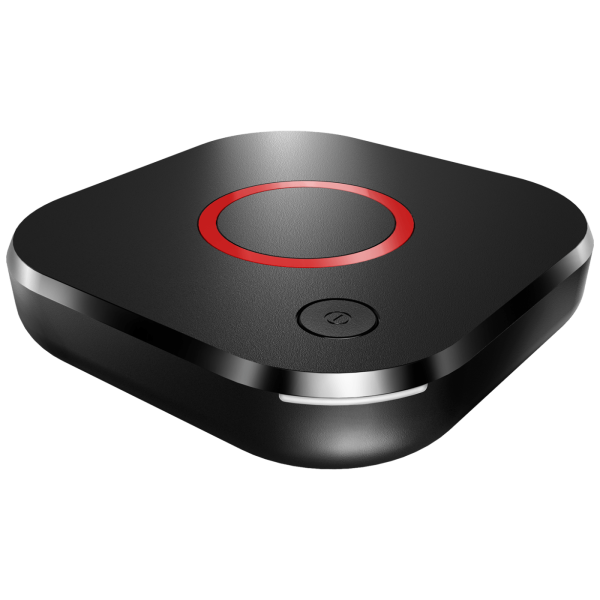

Mag Prijemnik IPTV za Stalker midlleware, 4K HDR - MAG 544
Mag- Proizvod iz grupe: Set Top Box
- Proizvođač: Mag
- Dostupna količina: 1
MAG544 je mocnan IPTV set-top box uređaji zasnovan na Linux OS-u
Uređaj ima Amlogic S905Y4 čipset sa četiri jezgra ARM Cortex-A35 procesora
Zahvaljujuci novom hardveru, model značajno nadmašuje prethodnu generaciju set-top boksova
Uređaj glatko reprodukuje 4K video i podržava sve moderne kodeke, uključujuci HEVC.API
Uređaj podržava osam kanala Dolbi Digital PlusTM audio, opremljen je sa dva USB 2.0 porta i povezuje se na Internet
preko Ethernet porta
HARDWARE
Chipset Amlogic S905Y4-B, 16 500 DMIPS
Processor ARM Cortex-A35 Quad-Core, 2 000 MHz
RAM / Flash 1 GB / 4 GB eMMC
GPU ARM G31 MP2, 850 MHz.
Supports OpenGL ES 3.2, Vulkan 1.1,and OpenCL 2.0
AUDIO AND VIDEO
Audio ?odecs MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2,
APE, FLAC, Dolby Digital Plus™
Video modes PAL, NTSC, 576p, 720p,1080p, 1080i, 2160p
Video ?odecs MPEG1/2 MP@HL, MPEG4 part 2 (ASP),AV1, MJPEG streams, H.265 Main/Main
10@L5.1 High 2160p@60 fps (optional),
H.264 AVC High@L5.1 2160p@30 fps,
XviD, 3D video support
Video containers TS, AVI, MPEG, MP4, MOV, MKV,M2TS, VOB
Image formats JPEG, PNG, BMP, RAW
Subtitles DVB, PGS, SRT, SSA/ASS, SUB, Teletext subs, WebVtt, Closed captions
Playlist formats M3U, M3U8, PLS, CUE

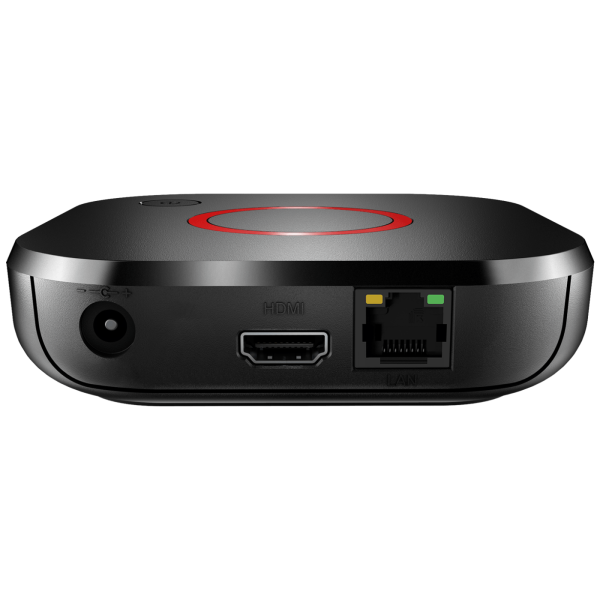

OTHER INTERFACES
Digital AV HDMI 2.1
Ethernet 100 Mbps
USB USB 2.0 x 2
Wi-Fi Built-in 2T2R ac (MAG544w3 only)
POWER PSU DC 5V, 2?
SOFTWARE AND CAS/DRM OS Linux 4.9
DRM/CAS Upon request
Dimenzije:
115 ? 115 ? 28 mm
Težina: 170 g
MAG544 je mocnan IPTV set-top box uređaji zasnovan na Linux OS-u Uređaj ima Amlogic S905Y4 čipset sa četiri jezgra ARM Cortex-A35 procesora Zahvaljujuci novom hardveru, model značajno nadmašuje prethodnu generaciju set-top boksova Uređaj glatko reprodukuje 4K video i podržava sve moderne kodeke, uključujuci HEVC.API Uređaj podržava osam kanala Dolbi Digital PlusTM audio, opremljen je sa dva USB 2.0 porta i povezuje se na Internet preko Ethernet porta
HARDWARE Chipset Amlogic S905Y4-B, 16 500 DMIPS Processor ARM Cortex-A35 Quad-Core, 2 000 MHz RAM / Flash 1 GB / 4 GB eMMC GPU ARM G31 MP2, 850 MHz. Supports OpenGL ES 3.2, Vulkan 1.1,and OpenCL 2.0 AUDIO AND VIDEO Audio ?odecs MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™ Video modes PAL, NTSC, 576p, 720p,1080p, 1080i, 2160p Video ?odecs MPEG1/2 MP@HL, MPEG4 part 2 (ASP),AV1, MJPEG streams, H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support Video containers TS, AVI, MPEG, MP4, MOV, MKV,M2TS, VOB Image formats JPEG, PNG, BMP, RAW Subtitles DVB, PGS, SRT, SSA/ASS, SUB, Teletext subs, WebVtt, Closed captions Playlist formats M3U, M3U8, PLS, CUE OTHER INTERFACES Digital AV HDMI 2.1 Ethernet 100 Mbps USB USB 2.0 x 2 Wi-Fi Built-in 2T2R ac (MAG544w3 only) POWER PSU DC 5V, 2? SOFTWARE AND CAS/DRM OS Linux 4.9 DRM/CAS Upon request Dimenzije: 115 ? 115 ? 28 mm Težina: 170 g
