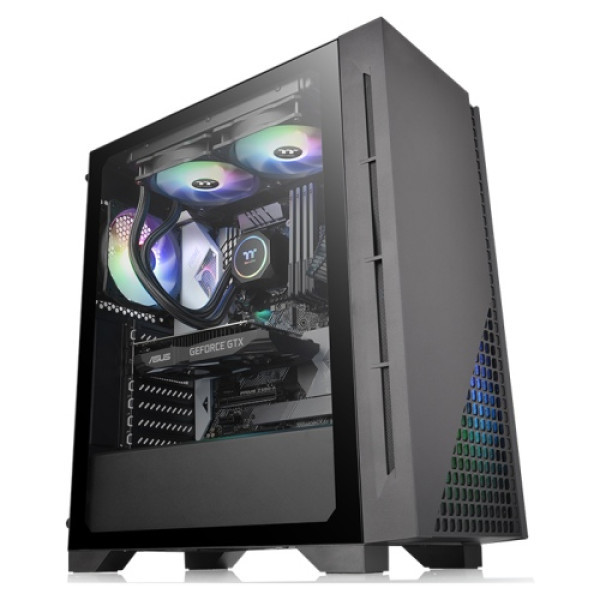

Kućište Thermaltake H330
Thermaltake- Proizvod iz grupe: Kućišta
- Proizvođač: Thermaltake
- Dostupna količina: 10
P/N | CA-1R8-00M1WN-00 |
SERIES | H Series |
MODEL | H330 TG |
CASE TYPE | Middle tower |
DIMENSION (H X W X D) | 419 x 210 x 480 mm |
(16.5 x 8.27 x 18.9 inch) | |
| |
NET WEIGHT | 6.12 kg / 13.49 lb |
SIDE PANEL | 4mm Tempered Glass x1(Left) |
COLOR | Exterior & Interior : Black |
MATERIAL | SPCC |
COOLING SYSTEM | Rear (exhaust) : |
1 x 120 x 120 x 25 mm fan | |
(1000rpm, 16 dBA) | |
DRIVE BAYS | 2 x 3.5“ or 2.5” (HDD Rack); 2 x 2.5” (HDD Bracket) |
-ACCESSIBLE | |
-HIDDEN | |
EXPANSION SLOTS | 7 |
MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
I/O PORT | 1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio, |
PSU | bez napajanja |
FAN SUPPORT | Front: |
3 x 120mm or 2 x 120mm or 1 x 120mm | |
2 x 140mm or 1 x 140mm | |
2 x 200mm or 1 x 200mm | |
Top: | |
2 x 120mm or 1 x 120mm | |
2 x 140mm or 1 x 140mm | |
Rear: | |
1 x 120mm, | |
RADIATOR SUPPORT | Front: 1 x 360mm or 1 x 240mm or 1 x 120mm |
1x 280mm or 1 x 140mm | |
Top: 1 x 240mm or 1 x 120mm | |
Rear: 1 x 120mm | |
CLEARANCE | CPU cooler height limitation: 150mm |
PSU length limitation: 160mm(With HDD Rack) | |
200mm(Without HDD Rack) | |
VGA length limitation: 300mm | |
RAM height limitation: 60mm(With radiator series) |
| Proizvođač | Thermaltake |
| Veličina kućišta | Middle tower |
| Dimenzije (VxŠxD) | 419 x 210 x 480 mm |
| Težina | 6.12 kg |
| Bočni panel | 4mm kaljeno staklo |
| Boja | Crna |
| Materijal | SPCC |
| Ugrađeni ventilatori | Pozadi: 1 x 120 x 120 x 25 mm ventilator (1000rpm, 16 dBA) |
| Slotovi za proširenje | Ukupno slotova: 7 2 x 3.5" ili 2.5" (HDD Rack) 2 x 2.5" (HDD Bracket) |
| Maks. dimenzije matične ploče | 17 x 17 cm (Mini ITX) 24.3 x 24.3 cm (Micro ATX) 30.5 x 24.3 cm (ATX) |
| I/O portovi | 1x USB 3.0 2x USB 2.0 1x HD Audio |
| Podrška za ventilatore | Napred: 3 x 120mm ili 2 x 120mm ili 1 x 120mm 2 x 140mm ili 1 x 140mm 2 x 200mm ili 1 x 200mm Gore: 2 x 120mm ili 1 x 120mm 2 x 140mm ili 1 x 140mm Nazad: 1 x 120mm |
| Podrška za ratijator vodenog hlađenja | Napred: 1 x 360mm, 1 x 240mm, 1 x 120mm Gore: 1 x 240mm, 1 x 120mm Nazad: 1 x 120mm |
| Maks. visina CPU kulera | 150mm |
| Maks. dužina grafičke kartice | 300mm |
| Maks. dužina napajanja | 160mm (sa HHD Rack-om) 200mm (bez HDD Rack-a) |
| Maks. visina RAM memorije | 60mm |
